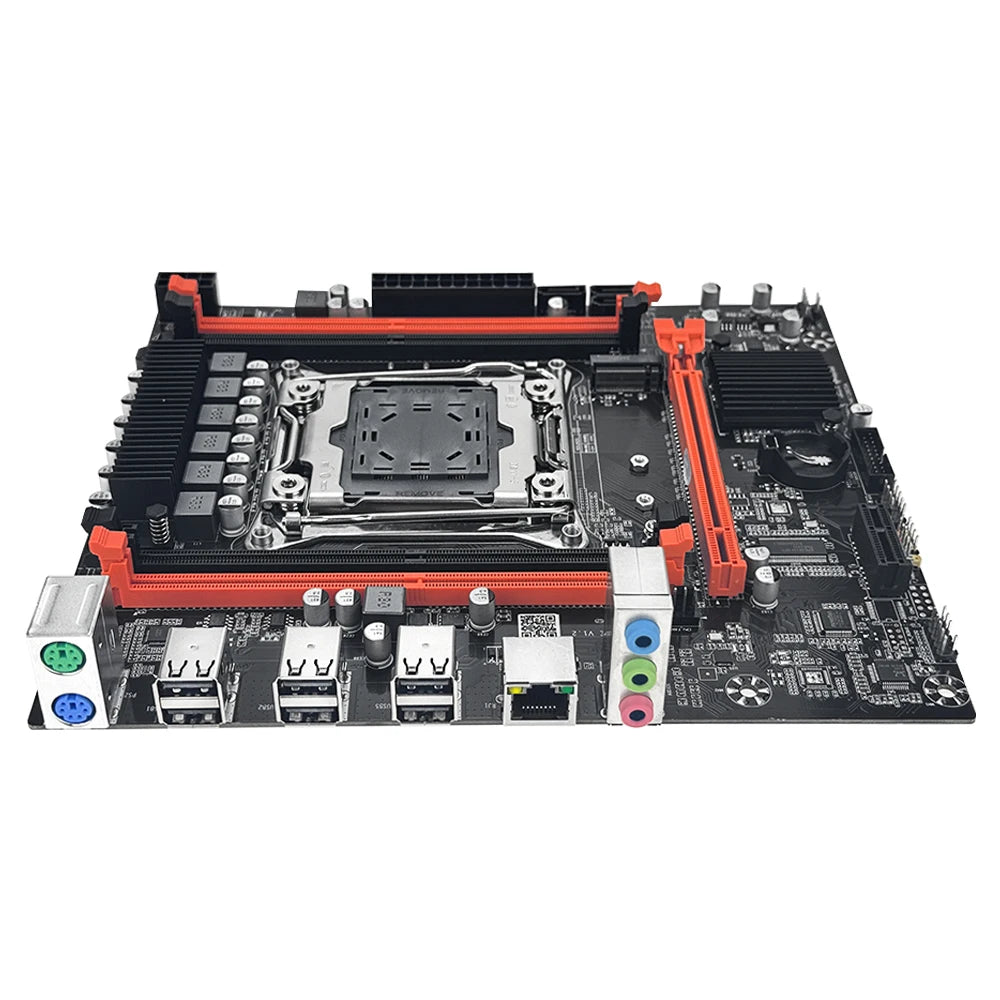

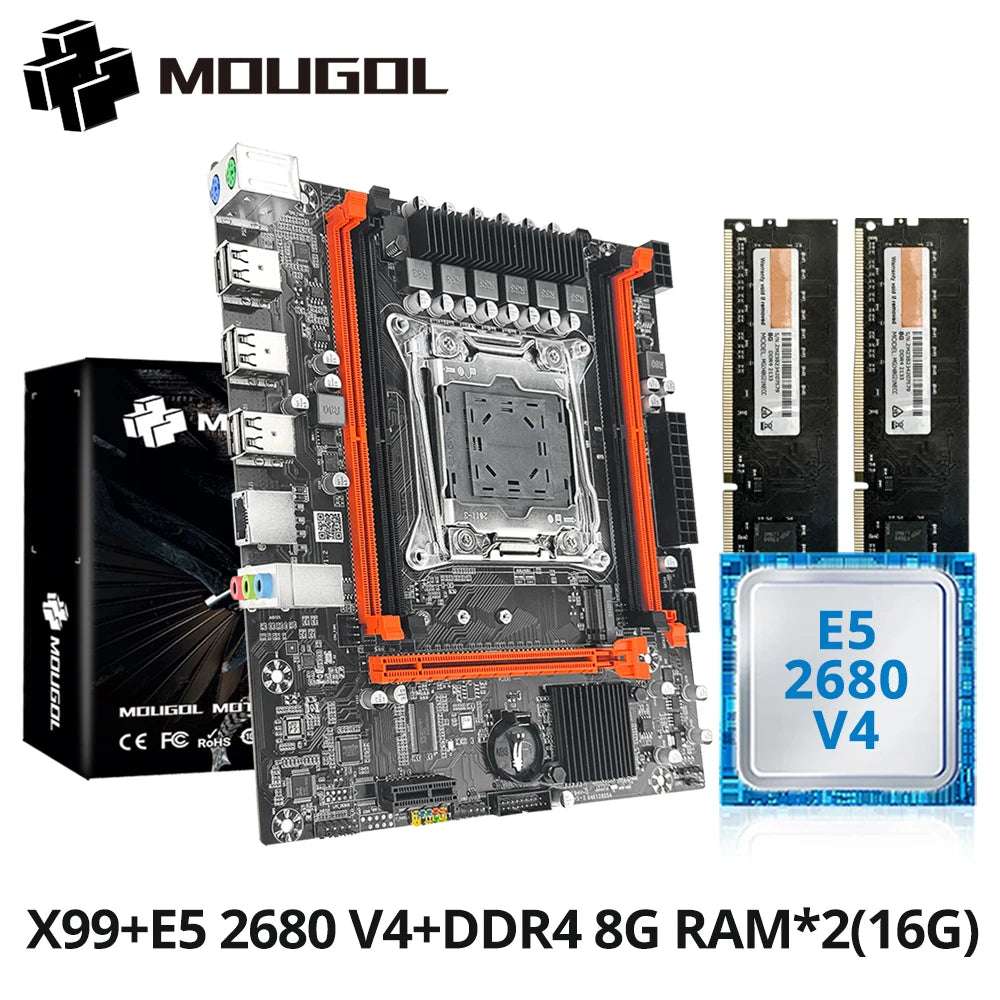

MOUGOL X99 Gaming Motherboard Kit with Intel Xeon E5 2680 V4 & DDR4 8Gx2 2133MHz Dual Channel ECC RAM M.2 NVME for Desktop PC
MOUGOL X99 Gaming Motherboard Kit with Intel Xeon E5 2680 V4 & DDR4 8Gx2 2133MHz Dual Channel ECC RAM M.2 NVME for Desktop PC
Couldn't load pickup availability
SPECIFICATIONS
Application: Desktop

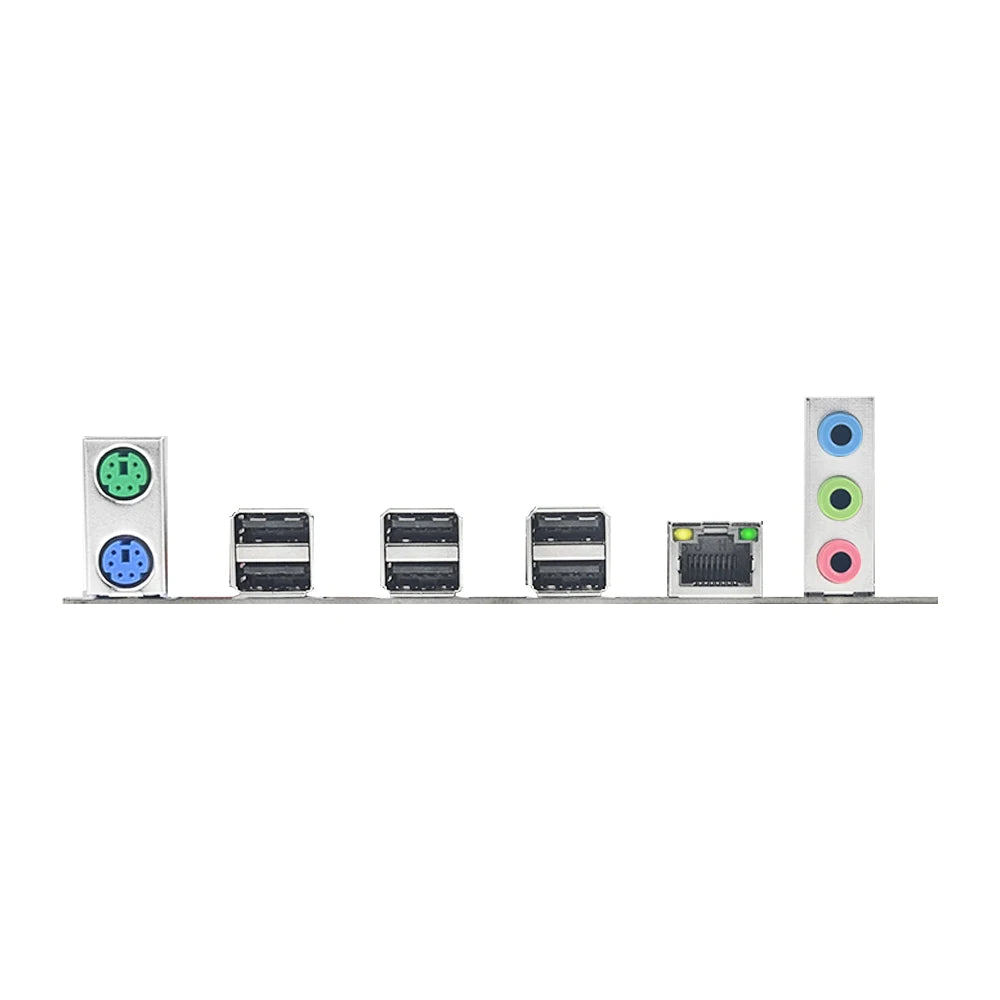

Back I/O Ports: 6 x USB 2.0,3 x Audio Jacks,PS/2
Battery Included: No
Brand Name: MOUGOL
Chipset: h55
Chipset Manufacturer: Intel
Choice: yes
Form Factor: Micro-ATX
Hign-concerned Chemical: None
Max LAN Speed: 1000Mbps
Maximum Ram Capacity: 128 GB
Memory channel: Double
Number Of Memory Slots: 4
Number of M.2: 1
Number of PCI: 1
Number of PCIe x 1: 1
Number of PCIe x 16: 1
Number of SATA Ports: 2
Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),AAFP Connector,8-pin +12V Power Connector,Speaker Connector
Onboard LAN: 1x RJ45
Origin: Mainland China
PCI - E standards: PCI-E 3.0
Package: Yes
Ports: PCI-Express X1
Processor compatibility: Intel Xeon E Series
RAID Supported: Yes
SATA RAID: 0
Socket Type: LGA 2011-3
Special Features: None
Storage Interface Type: SATA 2,SATA 3,M.2 (NVMe)
Support Memory Type: DDR4 ECC
Support USB Type: USB 2.0
Supports M.2 SSD: 2280,22110
Usage Scenario: Gaming,Audio & Video,Household,Office,Design,Video Production,Video Rendering
With CPU: Yes
Differences between packages
Motherboard+CPU: 1*MG-X99 D4+1*E5 2680 V4 CPU
Motherboard+CPU+RAM: 1*MG-X99 D4+1*E5 2680 V4 CPU*DDR4 8G*2

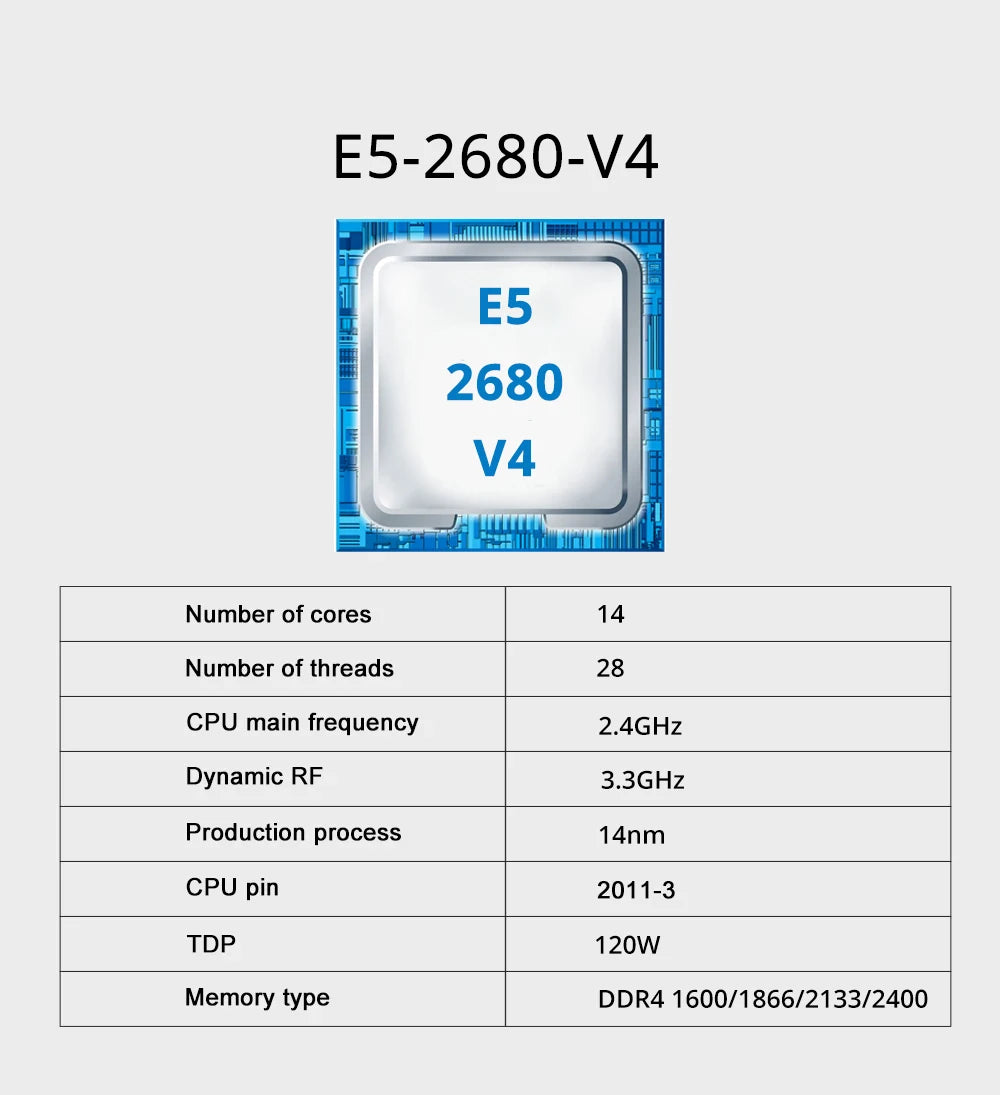

CPU:
Processor Series: Intel Xeon
Model number: E5 2680 V4
Processor Speed: 2.4GHz
Maximum core frequency: 3.3GHz
Processor Socket: LGA2011-3
Process: 14nm
Memory type: DDR4 1600/1866/2133/2400
The number of CPU cores: 14
The number of threads: 28
L3 cache size (MB): 35 MB
Wattage: 120 Watts
cpu will be final double tested before shipping
In this kit (motherboard+CPU+RAM), motherboard is brand new, CPU and RAM is used(not new). We fully combos testing before delivery. and make sure the whole set can works perfectly. Since CPU and RAM have used marks on it, please don't place order if you mind. (The old and new level of RAM+CPU cannot be controlled, and it is sent randomly.)

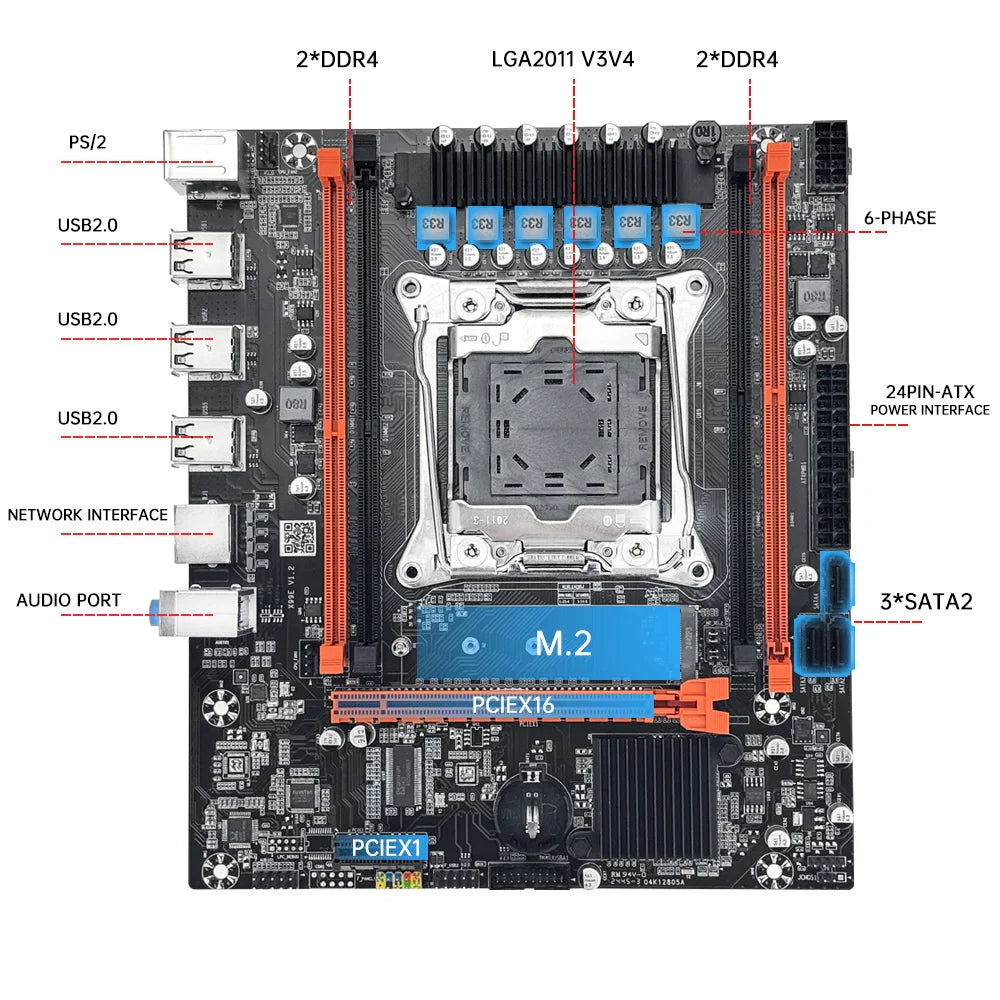

Specification:
Ethernet: 1 Realtek Gigabit Ethernet card
Audio: 1 audio interface (MIC-IN, LINE OUT, LINE IN)
USB Port: 6 USB ports 2 0 interface
PCIE: 2 (1 PCIE X16, 1 PCIE X1)
USB ports: 4 (one USB port can be connected to two USB 2.0 ports)
Internal connectors
SATA interface: 3 SATA interfaces (1 SATA3.0 2 SATA2.0)
ATXPWR interface: 1 standard 1X8PIN power socket: 1 standard 1X24PIN power socket
Audio: 1 2x5PIN pin
Jlpc: 1 2x5pin battery
M. 2 interfaces: 1 M.2 interface (supporting PCIE M. 2/SATAM. 2)
:M-ATX【215 x 190】mm
Note:
(2) The battery in motherboard photos is not included and will be removed before shipping, as this battery is forbidden according to the logistics requirements.
(3)For tax issues, please make sure that you can solve the customs clearance problem yourself, if you can't, we don't recommend that you buy goods in our store. We are not responsible for customs duties. Thank you for your understanding.
(4) Install the memory. All RAM needs to be installed in slot #1 and slot #2 (orange slots) first. The motherboard's gray RAM slots (#3/#4) will not work alone. The memory needs to be inserted into the same color slots
# # #Because there are too many computer accessories in the market, it is likely that there are some niche brands, poor quality or ES/QS versions of CPU, RAM, M.2 SSD or other accessories may appear incompatible with the motherboard. You can confirm with our customer service before purchasing. If there is no confirmation before purchase, then incompatibility will occur when you receive the motherboard and we will not accept refunds. When you purchase this link, we assume that you have read and understood the situation ation . Please note please do not buy!
